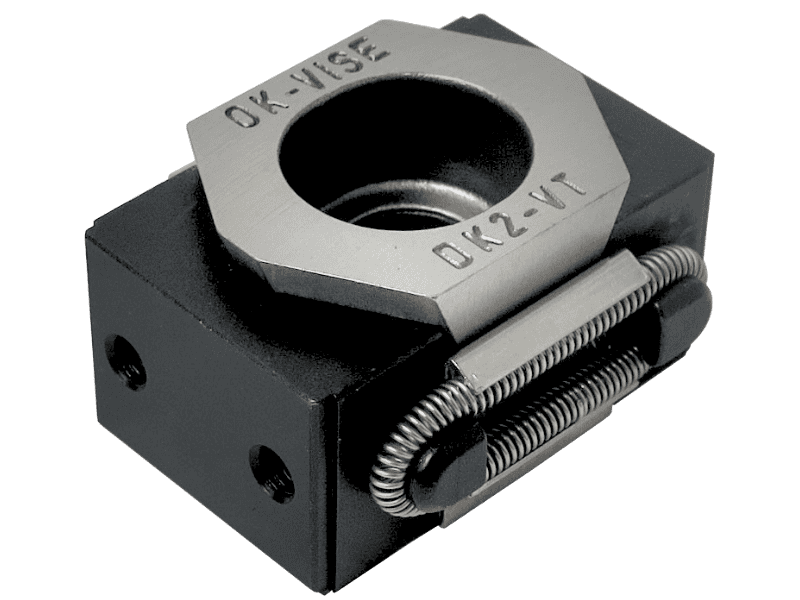

Self-adjustable model

Self-adjustable clamp model is a great option when the workpiece has irregular shapes.

These clamps have a self-adjustable ball pressure screw inserted into a clamp jaw.

The ball bearing at the end is made of steel and equipped with torsion protection, allowing the ball to self-adjust up to 9 degrees. This makes clamping irregular-shaped parts and castings more flexible.

Latest self-adjustable models (-‘E’) come with self-adjusting balls in both jaws.

Details

Type	Jaw types	A min	A optimum	A max	B	C	D	E	Diameter of serration (D1)	G min	G opt	G max	Socket Head Srew DIN 912	Pressing force of Jaws (max), kN	Tightening torgue (max), Nm	Weight in g (*oz) approx.	Hardness of Jaws HRC X	Hardness of Jaws HRC Y	Dimensions	STEP (3D)
BK2-VT-B	adjusting/ serrated	33	35	37	29	15	21	2.5	7,2	19,5	20,5	21,5	M8x20	22	43	64	30-34	48-52
BK2-VT-E	adjusting	39	41	43	29	15	21	2,5	7,2				M8x20	22	43	72	30-34
DK2-VT-B	adjusting/ serrated	52	55	59	41	22	30	4	10,7	31	32,5	34,5	M12x30	55	145	212	30-34	48-52
DK2-VT-E	adjusting	62	65	69	41	22	30	4	10,7				M12x30	55	145	242	30-34
DK2-VTI-E (inch model)	adjusting	2,44	2,56	2,72	1,61	0,86	1,18	0,15	0,42				1/2-1 1/4	55	145	8,54	30-34
