OK-VISE Blank system set for one workpiece clamping

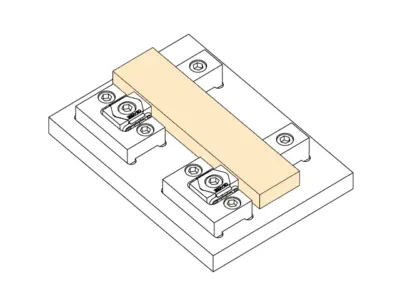

SK-Z9 blank set machining fixture aplication

With a SK-Z9 set, you can create a dedicated fixture for a workpiece. The T-slot nut underneath the clamp provides an extended stroke compared to the static thread, allowing for a greater variation in the width of the workpiece.

If you are interested in hearing more about the set, please contact your nearest distributor.

Components used in this fixture set:

Type Description pcs
KCS-DS1 Single directional clamp smooth 2
KS-S1 Stop module smooth 2
KP-1 Parallel 4
